Indoor Flexible Crystal Transparent Film Full Color Led Display Screen

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
+8613726029261
Reservation Now
Detail

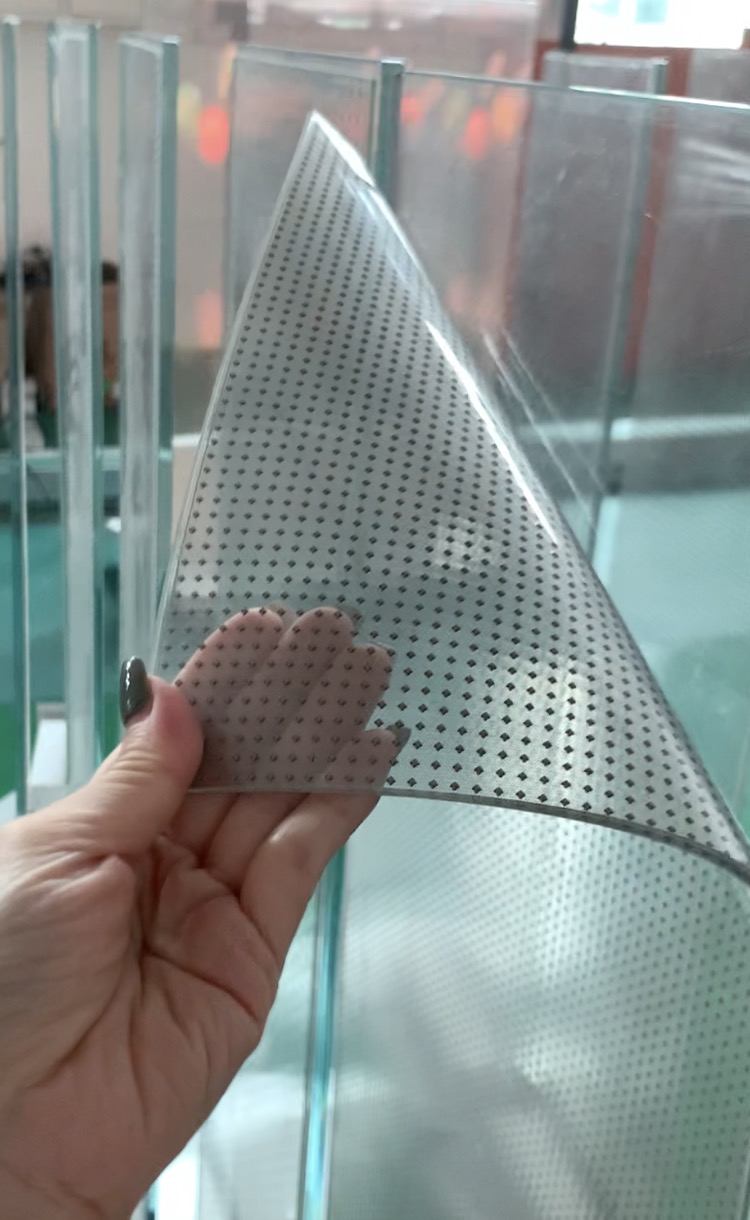

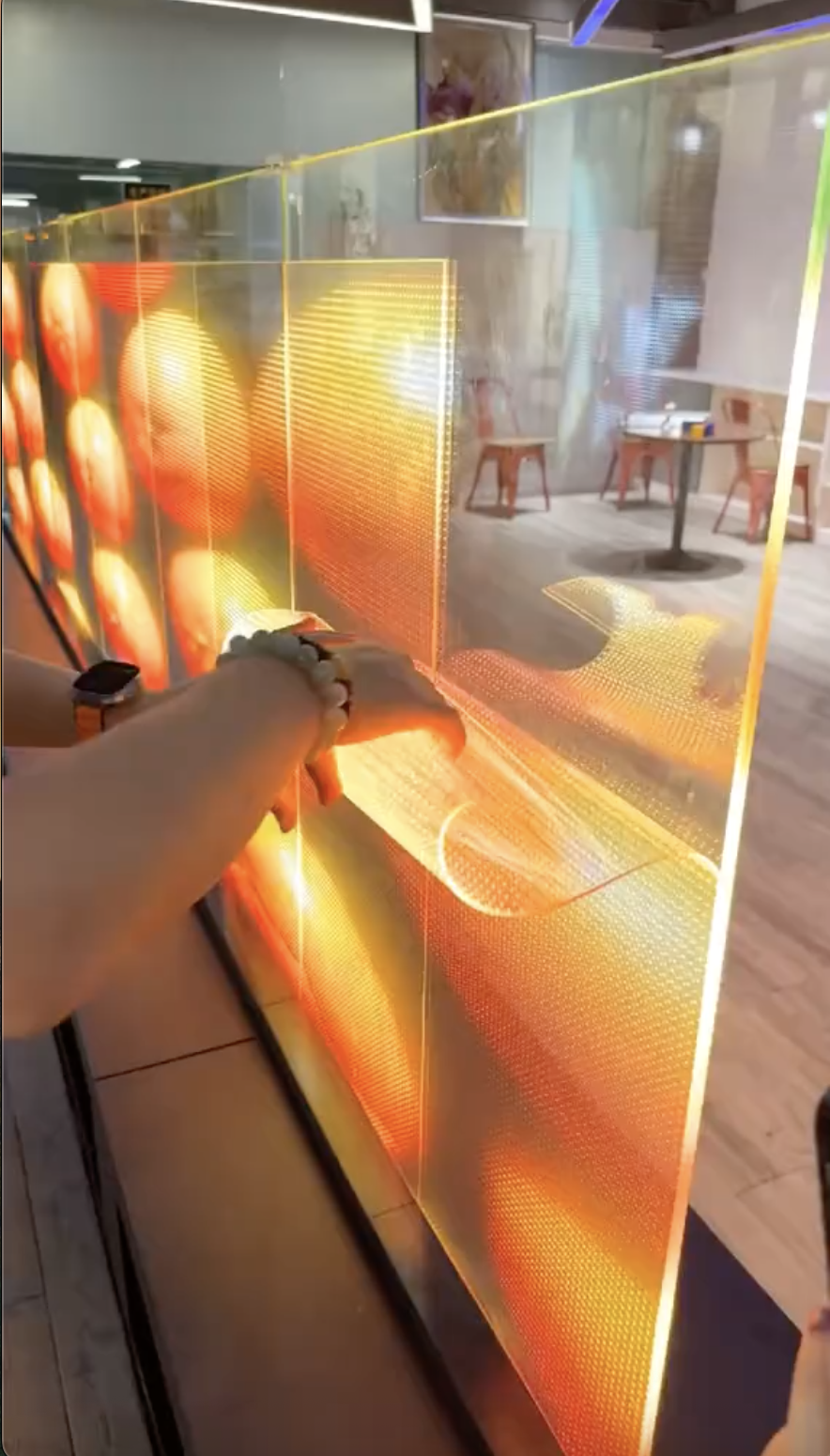

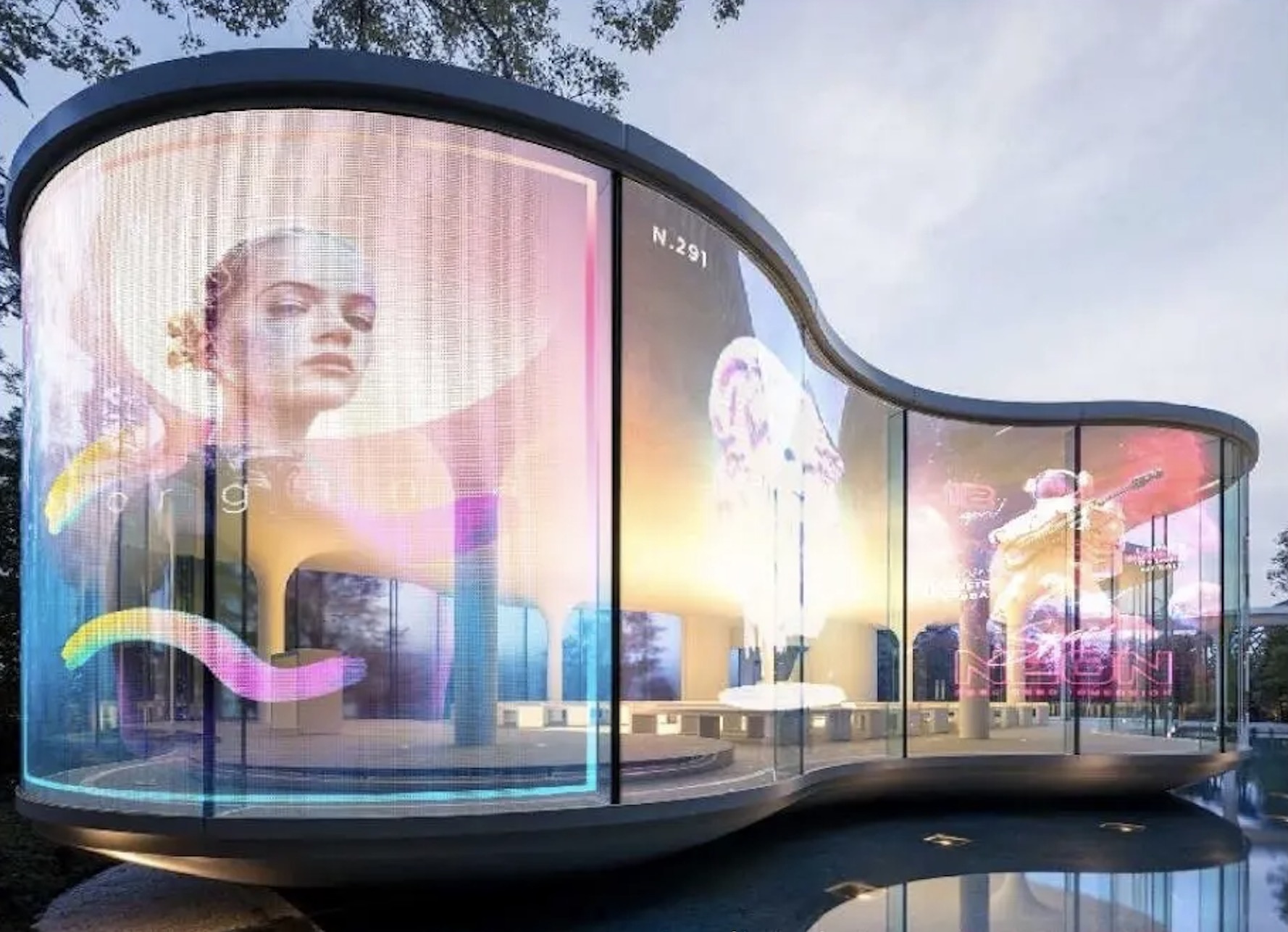

LED crystal film screens are ultra-light, ultra-thin, and ultra-transparent.   The product has a simple structure and is easy to operate, and is mainly used in science museums, exhibition halls, high-speed rail stations, airports, hotels, theaters, commercial centers, and shop windows.


Product Features:


1) Lightweight: Professional aesthetic design, lightweight and beautiful, the display screen weighs only 3.5KG/㎡.


2) Thin: The screen thickness is less than 3mm, allowing for installation on any curved surface. It fits perfectly with the building structure when mounted on transparent glass, without altering the architectural style.


3) Transparent: Compared to traditional LED transparent screen products, the biggest feature of this product is its lack of a structural frame, truly full transparency, with a direct visual transparency rate of over 90%.

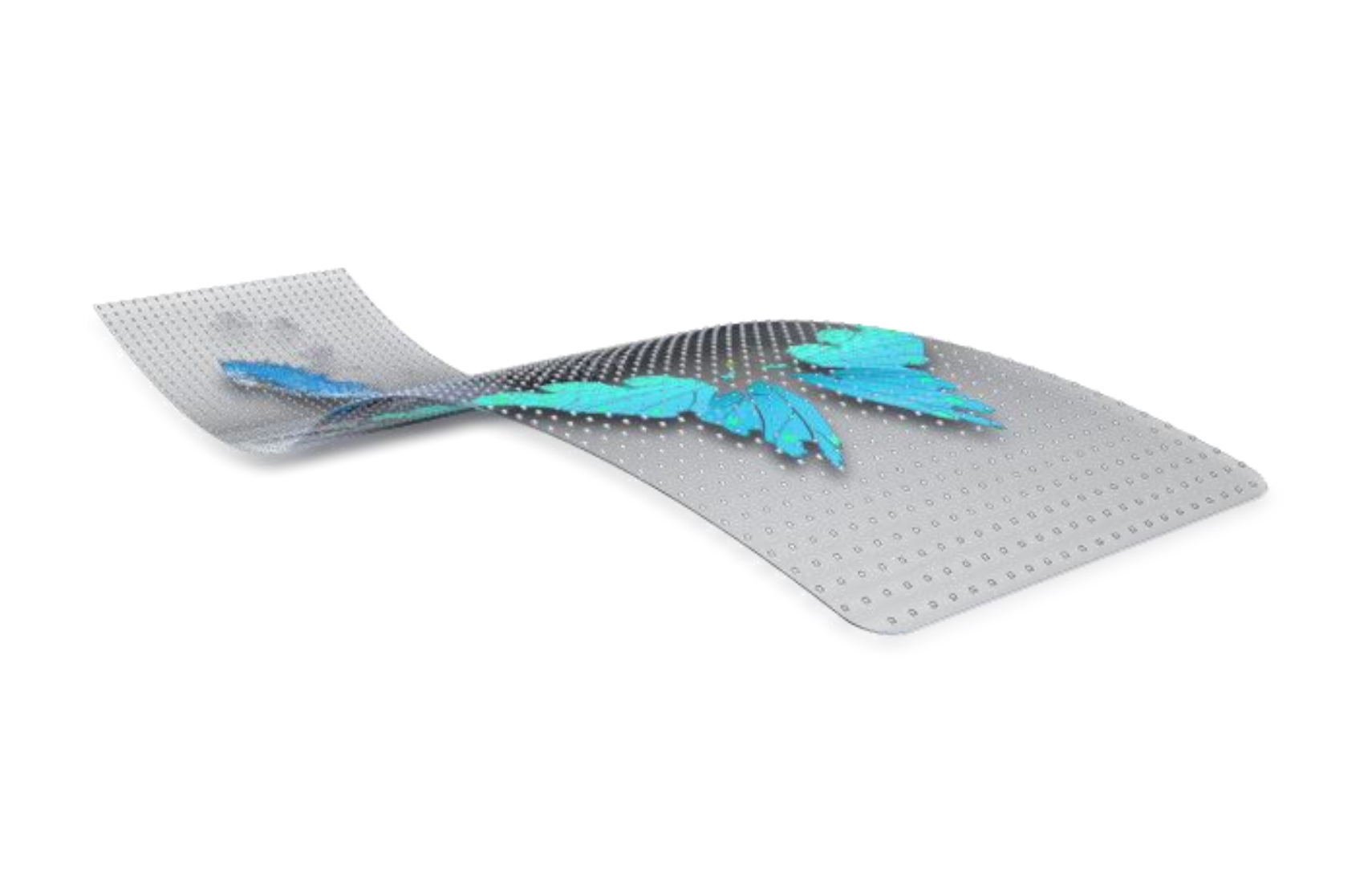

4) Flexible: Customizable modules, flexible and cuttable, flexible and versatile, the best partner for curved glass and irregularly shaped screens.







Product specificationP4-4P5P4-8P6-6P8-8P10-10P20-20
Pixel pitch4mm*4mm（x*y）5mm*5mm（x*y）4mm*8mm（x*y）6mm*6mm（x*y）8mm*8mm（x*y）10mm*10mm（x*y）20mm*20mm（x*y）
Pixel62500p;points/m240000p;points/m231250p;points/m227556p;points/m215625p;points/m210000p;points/m22500p;points/m2
LED specificationSMD1212 (light drive in one)SMD1212 (light drive in one)SMD2121 (light drive in one)SMD2121 (light drive in one)SMD2121 (light drive in one)SMD2121 (light drive in one)SMD2121 (light drive in one)
Pixel composition1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B

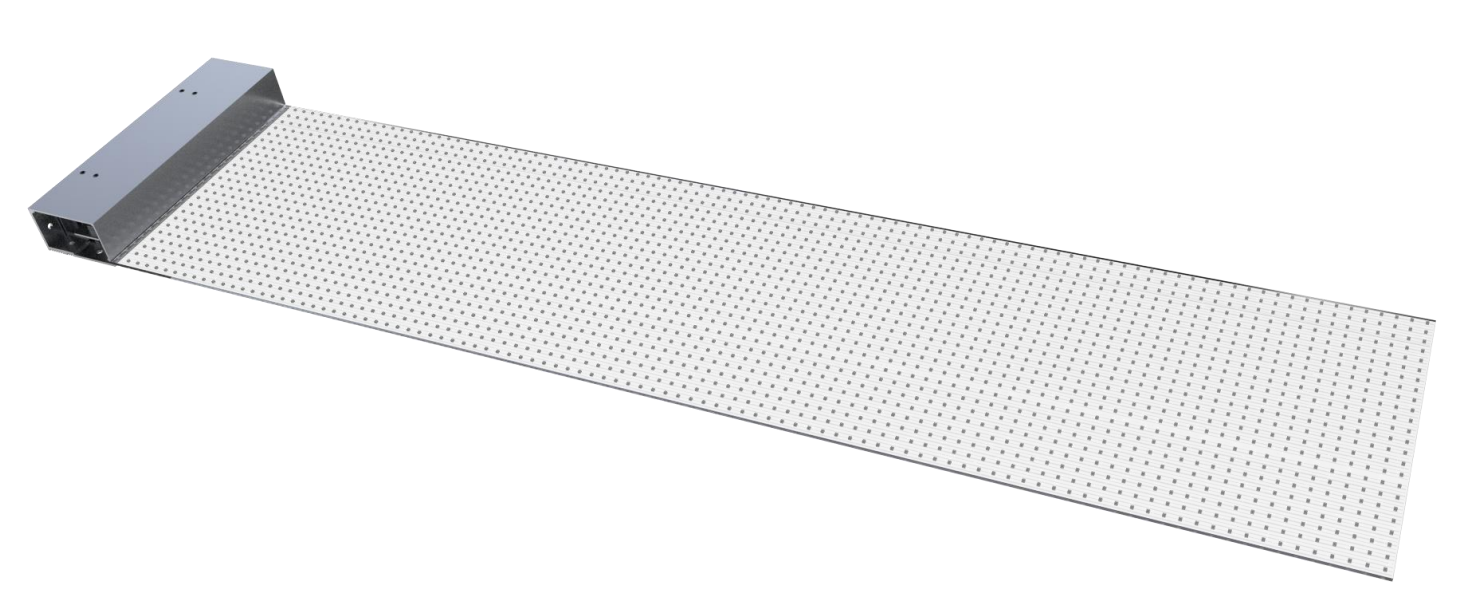

Module Size1000mm*240mm1000mm*240mm1000mm*240mm1000mm*240mm1000mm*240mm1000mm*240mm1000mm*240mm
Module Resolution250*60200*48250*30166*40125*30100*2450*12
Pixel resolution250*250/㎡200*200/㎡250*125/㎡166*166/㎡125*125/㎡100*100/㎡50*50/㎡
Permeability≥85%≥85%≥85%≥85%≥85%≥90%≥93%
Box wiring modeInternal wiring (clean back)Internal wiring (clean back)Internal wiring (clean back)Internal wiring (clean back)Internal wiring (clean back)Internal wiring (clean back)Internal wiring (clean back)
Module weight≤ 9.5KG/m2≤ 9.5KG/m2≤ 9.5KG/m2≤ 9.5KG/m2≤ 9.5KG/m2≤ 9.5KG/m2≤ 9.5KG/m2
White balance brightness≥1500cd/㎡≥1500cd/㎡≥2000-2500cd/㎡≥2000-2500cd/㎡≥2000-2500cd/㎡≥2500-3000cd/㎡≥1200cd/㎡
Peak power consumption720 W/㎡720 W/㎡720 W/㎡720 W/㎡720 W/㎡720 W/㎡720 W/㎡
Average power consumptionAbout 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)About 240 W/㎡ (depending on the video source)
Refresh frequency≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ
Grayscale level16Bit16Bit16Bit16Bit16Bit16Bit16Bit
Brightness control levelGrade 0-255Grade 0-255Grade 0-255Grade 0-255Grade 0-255Grade 0-255Grade 0-255
Color temperature3200K-8500K (adjustable)3200K-8500K (adjustable)3200K-8500K (adjustable)3200K-8500K (adjustable)3200K-8500K (adjustable)3200K-8500K (adjustable)3200K-8500K (adjustable)
Frame change frequency≥60Hz≥60Hz≥60Hz≥60Hz≥60Hz≥60Hz≥60Hz
Viewing angleH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degrees
Input signalDVI   VGA, composite videoDVI   VGA, composite videoDVI   VGA, composite videoDVI   VGA, composite videoDVI   VGA, composite videoDVI   VGA, composite videoDVI   VGA, composite video
Control screen modeOr synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
Protection gradeIP30IP30IP30IP30IP30IP30IP30
Power supply requirementsAC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
working temperature（-0°-50°C）（-0°-50°C）（-0°-50°C）（-0°-50°C）（-0°-50°C）（-0°-50°C）（-0°-50°C）
Theoretical service life100000 hours100000 hours100000 hours100000 hours100000 hours100000 hours100000 hours
