Detail

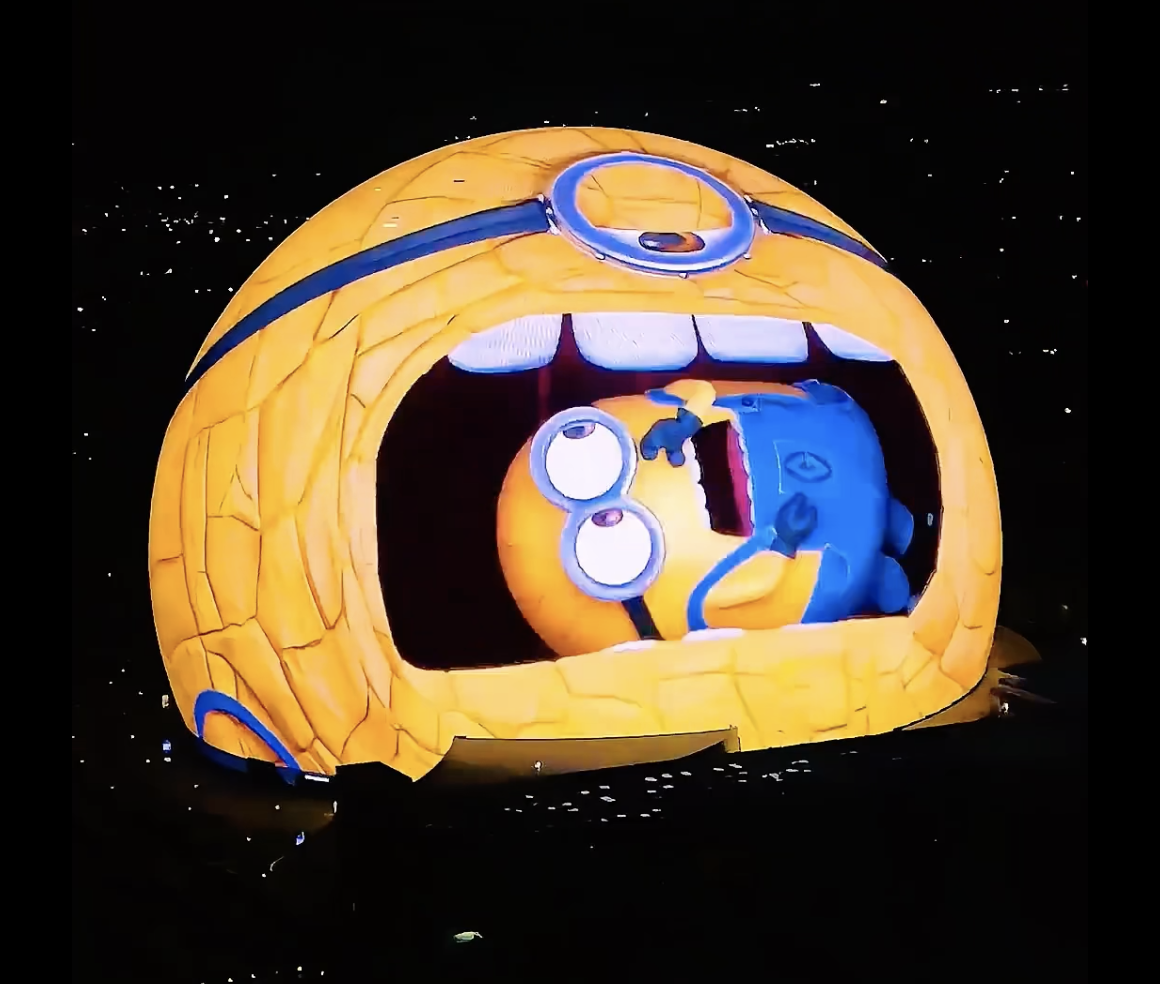

1: Usage scenarios: Indoor or Outdoor. Applicable to museums, science and technology museums, corporate exhibition halls, exhibition centers, outdoor spherical video advertisements, spherical lighting projects, and other venues
2: Perspective: 360° perspective, strong visual impact, and good eye-catching effect.
3: Customization: It can be customized for any size and pixel spacing.

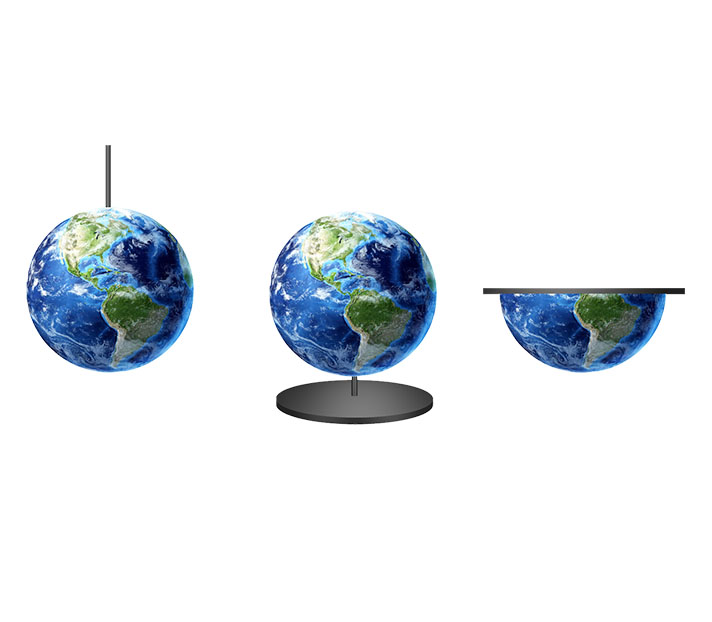

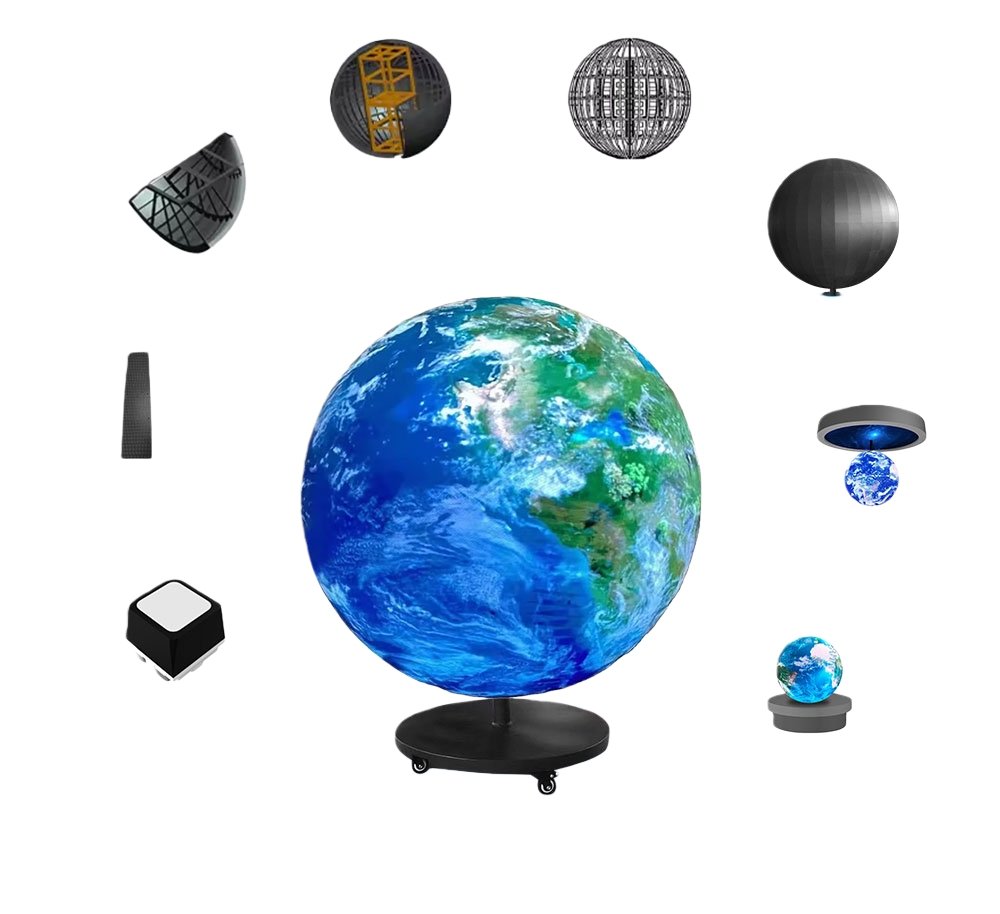

4: Installation: Multiple installation methods are available, including suspended, floor-mounted, and wall-mounted. Signal and power cables between cabinets utilize quick couplers for convenient and rapid installation. It can be used in conjunction with professional audio and video processing systems.
| item | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| usage location | indoor or outdoor | ||||||
| LED type | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| physical density | 160000 pixel/㎡ | 11111 pixel/㎡ | 62500 pixel/㎡ | 40000 pixel/㎡ | 27777 pixel/㎡ | 15625 pixel/㎡ | 10000 pixel/㎡ |

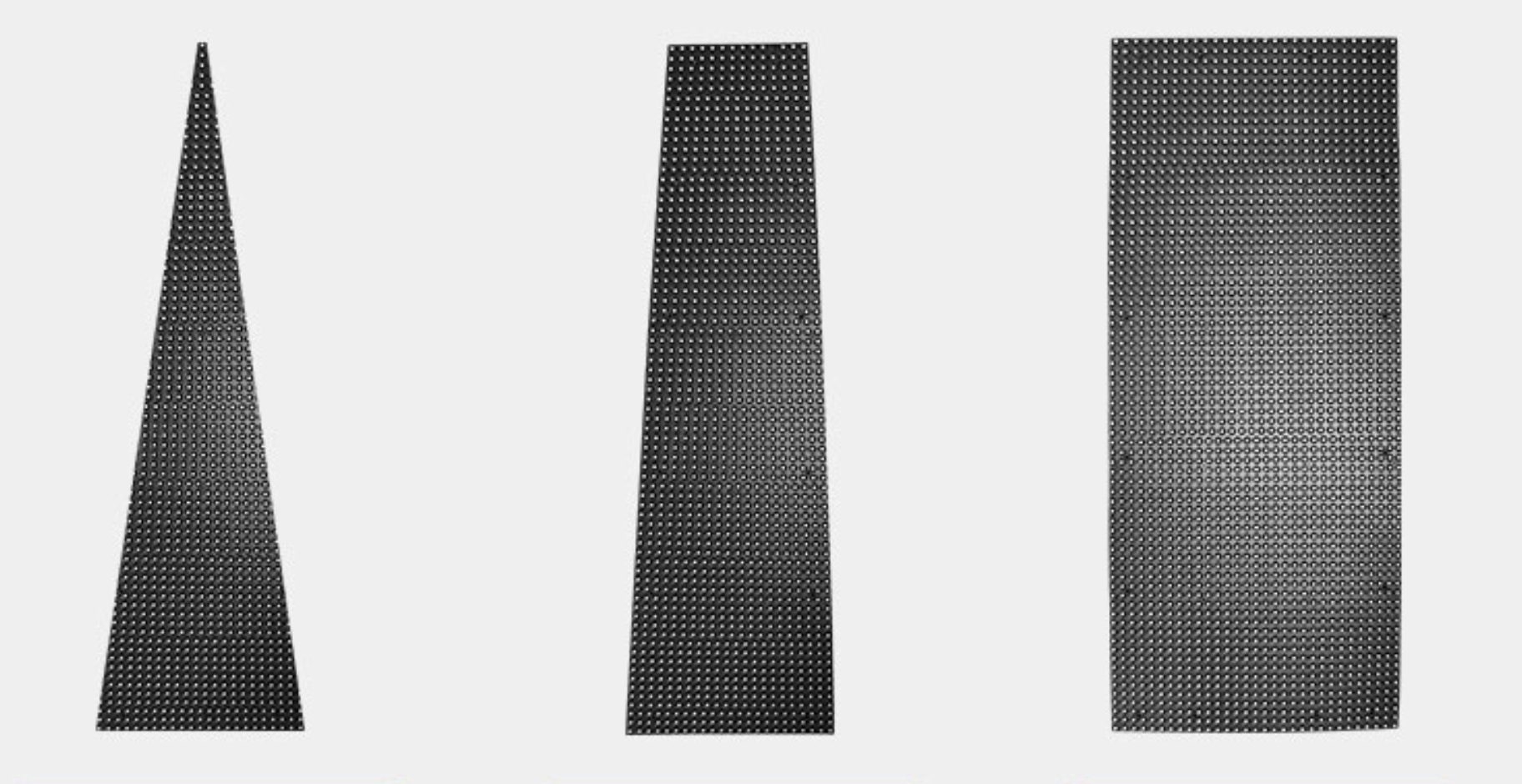

| module size（mm*mm） | customizable | ||||||
| drive type | 1/16 S | 1/16 S | 1/10 S | 1/8 S | 1/8 S、1/4 S | 1/5 S | 1/2 S、1/4 S |
| view angle | H：>160°，V：>120° | ||||||
| refresh rate | ≥7860Hz | ||||||
| brightness | 700cd/m² - 7000cd/m² | ||||||
| size | outdoor diameter：1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m / 7m / 8m / 9m / 10m / 15m20m / 30m / 50m etc. | ||||||
| indoor diameter：0.2m/0.3m/0.4m/0.5m/0.6m/0.8m/1m/1.2m/1.5m/1.8m/2m/2.5m/3m/4m/5m/6m....... etc. | |||||||
| module weight | indoor 0.2-0.5 kg | outdoor 0.5-0.9 kg | |||||
| display weight | indoor 25-35 kg/m² | outdoor 35-55 kg/m² | |||||
| control system | synchronous | ||||||
| humidity | 10%~95% | ||||||
