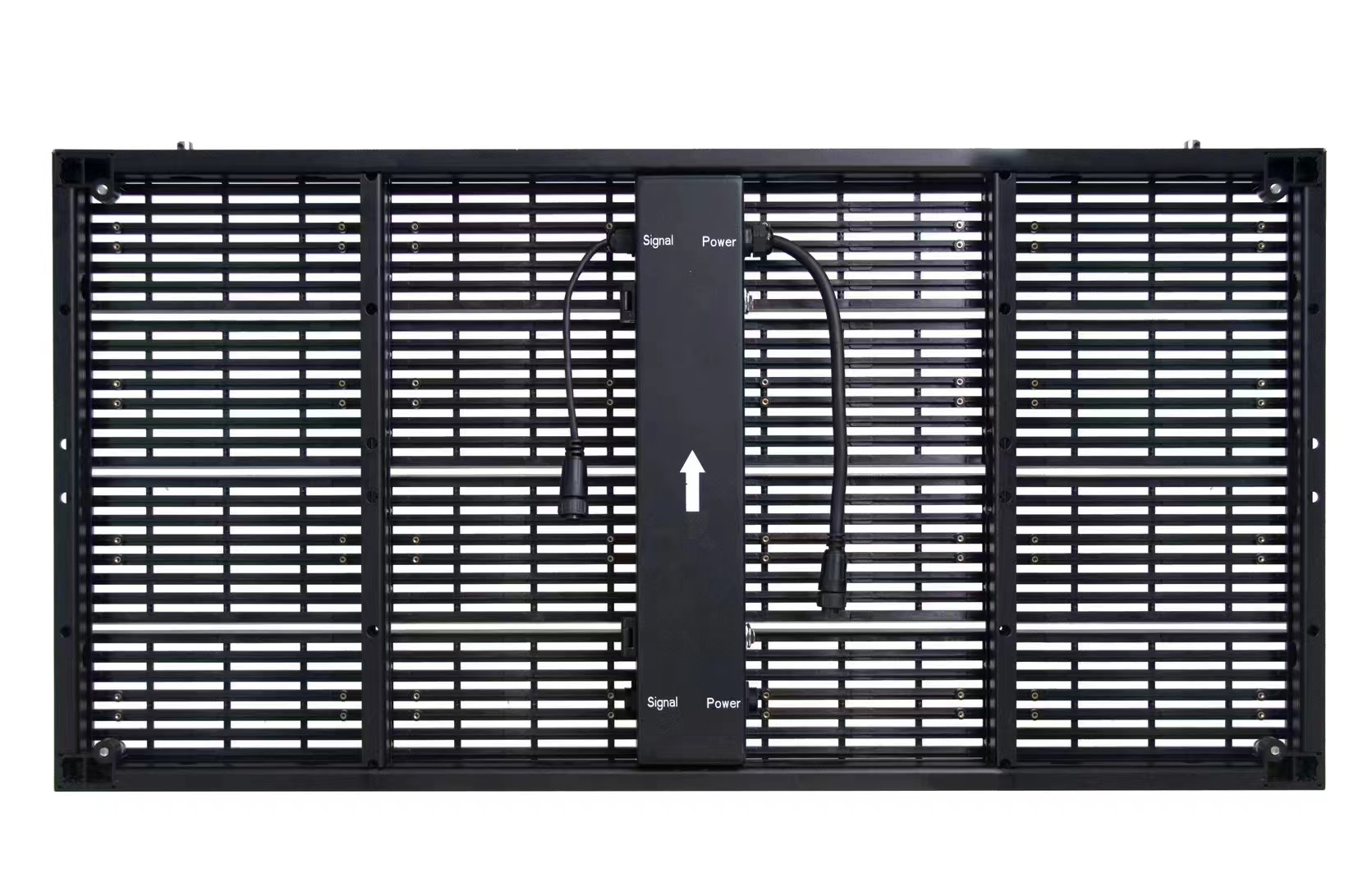

Outdoor SMD Mesh Full Color Led Display Screen
Pixel Pitch3.91-7.81mm5.2-10.4mm10.42-10.42mm7.8-15.6mm15.6-15.6mm
Pixel Density32,768 pixels/㎡18,432 pixels/㎡9,216 pixels/㎡8,192pixels/㎡4,096 pixels/㎡
LED LampSMD1921SMD2727SMD2727SMD2727SMD2727
Cabinet Size (W*H)1000mm*1000mm / 1000mm*500mm
Cabinet Resolution256*128/256*64 dots192*96/192*48 dots96*96 / 96*48 dots128*64/128* 32dots64*64 / 64*32 dots
Product TypeFront-emittingFront-emittingFront-emittingFront-emittingFront-emitting
MaterialProfile AluminiumProfile AluminiumProfile AluminiumProfile AluminiumProfile Aluminium
Weight (±0.25kg)16kg/㎡16kg/㎡16kg/㎡16kg/㎡16kg/㎡
Brightness5,000-14,000nits5,000-14,000nits5,000-14,000nits5,000-14,000nits5,000-14,000nits
Viewing AngleH140°, V140°H140°, V140°H140°, V140°H140°, V140°H140°, V140°
Transparency Rate45%50%50%40%40%
Minimum Viewing Distance≥4m≥7m≥10m≥12m≥15m
Driving Mode 1/8 1/4 1/2 1/2Static
Gray Scale16bit
Refresh Rate3840Hz
Maintenance ModeFront or Rear
ConsumptionMax Power ≤800 W/㎡ ;   Average Power ≤260
Input Voltage100~240VAC, 50/60Hz
Ingress ProtectionIP65
Lifetime at 50% Brightness100,000 hours
Operating Temperature-20~60℃
Operating HumidityOutdoor 10~60%
InstallationHanging, fixed
ApplicationOutdoor
