Detail
mini filp chip technology,
anti-collision, HDR picture quality.
Common cathode circuit with low power consumption. 3 in 1 integrated system.
Mini COB Contrast Ratio 10000:1
Power supply, control system and hub card 3 in 1 integrated system, more lighter weight
and more stable for screen working.
Easy cleaning by water, anti-collision
High precision stitching, micron tolerance and adjustable
Common cathode circuit with low power consumption.
| Indoor Front Maintenance COB Full Color Led Display Screen | ||||||
| Pixel Pitch | P0.625 | P0.78 | P0.93mm | P1.25mm | P1.56mm | P1.87mm |
| Pixel Density | 2,560,000 px/㎡ | 1,638,400 px/㎡ | 1,137,777 px/㎡ | 640,000 px/㎡ | 409,600 px/㎡ | 284,444 px/㎡ |
| LED Chip | Flip Chip | |||||
| Module Size (W*H) | 150*168.75mm | |||||
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 120*135 dots | 96*108 dots | 80*90 dots |
| Surface Treatment | Matt COB | |||||
| Surface Hardness | 4H | |||||

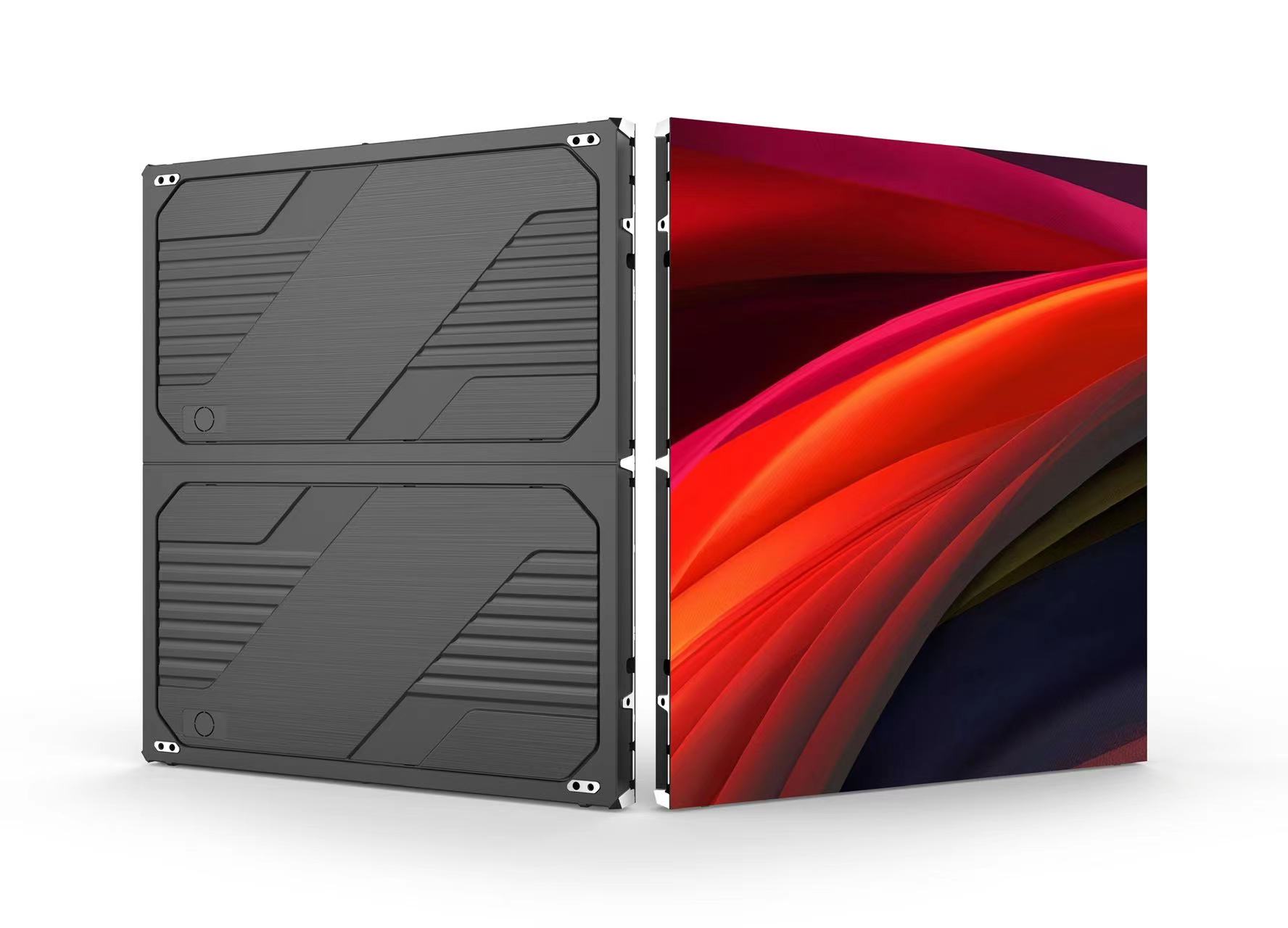

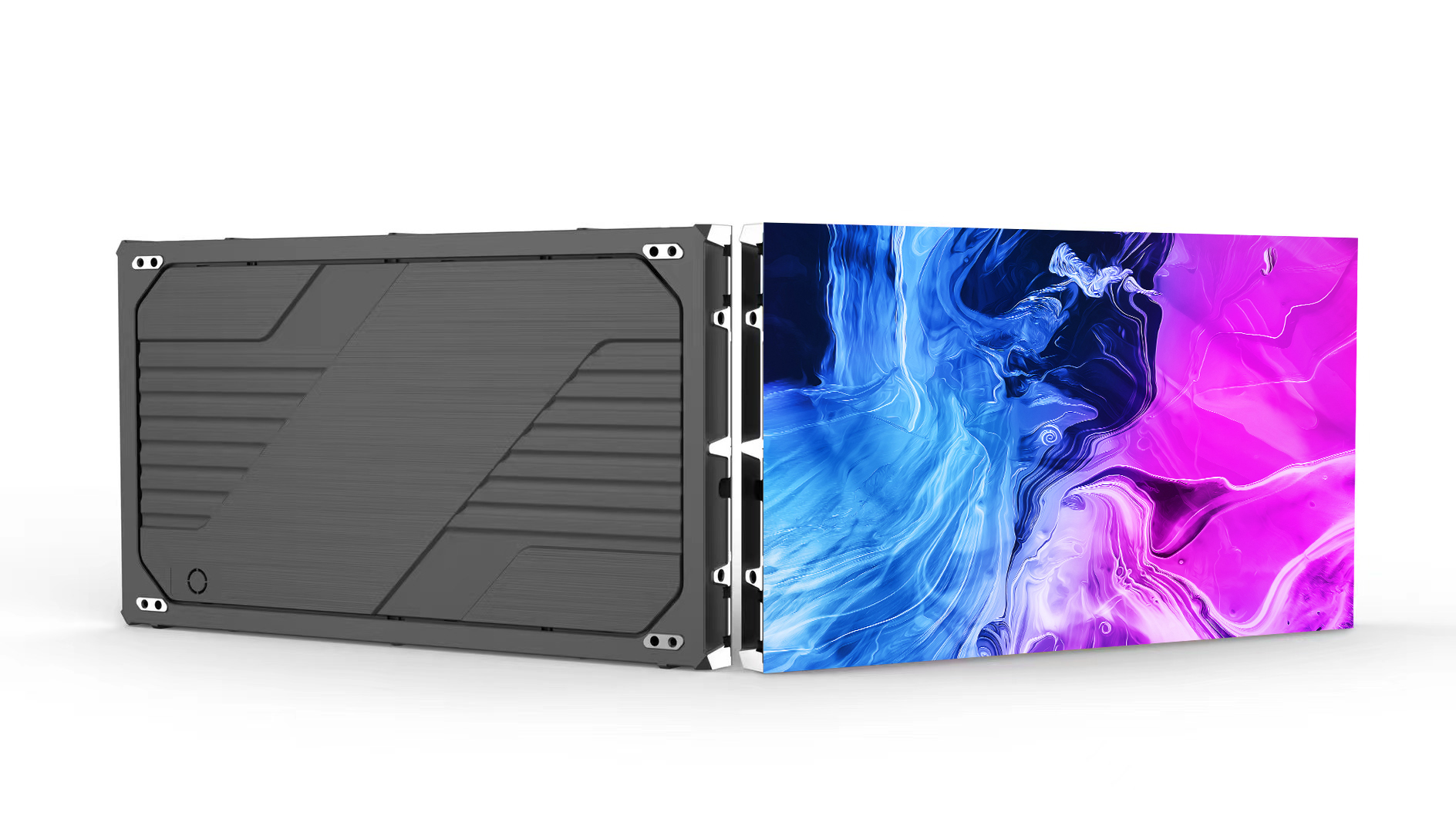

| Panel Size (W*H*D) | 600mm*675mm / 600mm*337.5mm | |||||
| Panel Weight | 7.9kg (600*675mm) / 4kg (600*337.5mm) | |||||
| Panel Resolution(dots) | 960*1080 / 960*540 | 768*864 / 768*432 | 640*720 / 640*360 | 480*540 / 480*270 | 384*432 / 384*216 | 320*360 / 320*180 |
| Material | Die-casting Aluminium | |||||
| Circuit Design | Options: Common Cathode Circuit / Common Anode Circuit | |||||
| Flash Correction Storage | Applicable | |||||
| Brightness | Standard 600nits | |||||
| Refresh Rate | 3840Hz | |||||
| Contrast Ratio | 10000:1 (Condition without lighting) | |||||
| Color Temperature | 9300K (Standard) | |||||
| Viewing Angle | H160°, V160° | |||||
| Input Voltage | AC 100~240V 50/60Hz | |||||
| Max. Power Consumption | 190w/panel (600*675mm) | 170w/panel (600*675mm) | 150w/panel (600*675mm) | 140w/panel (600*675mm) | 140w/panel (600*675mm) | 130w/panel (600*675mm) |
| (White Balance 600nits) | 95w/panel (600*337.5mm) | 85w/panel (600*337.5mm) | 75w/panel (600*337.5mm) | 70w/panel (600*337.5mm) | 70w/panel (600*337.5mm) | 65w/panel (600*337.5mm) |

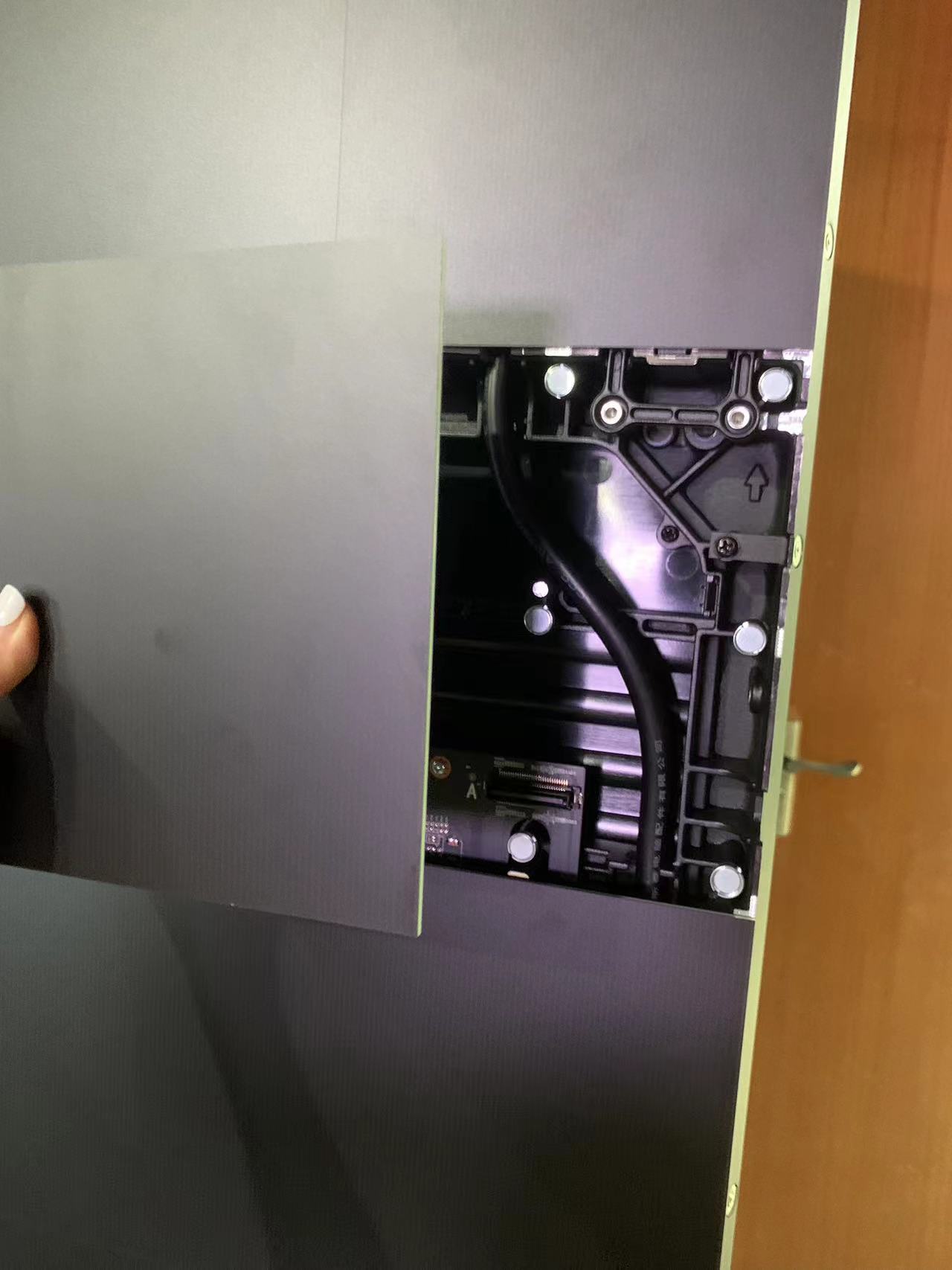

| Maintenance Way | Front Maintenance | |||||
| IP level of PCB serface | IP54 (Washable by clean water) | |||||
| Lifetime at 50% Brightness | 100,000 hours | |||||
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | |||||
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | |||||
| Application | Indoor | |||||
