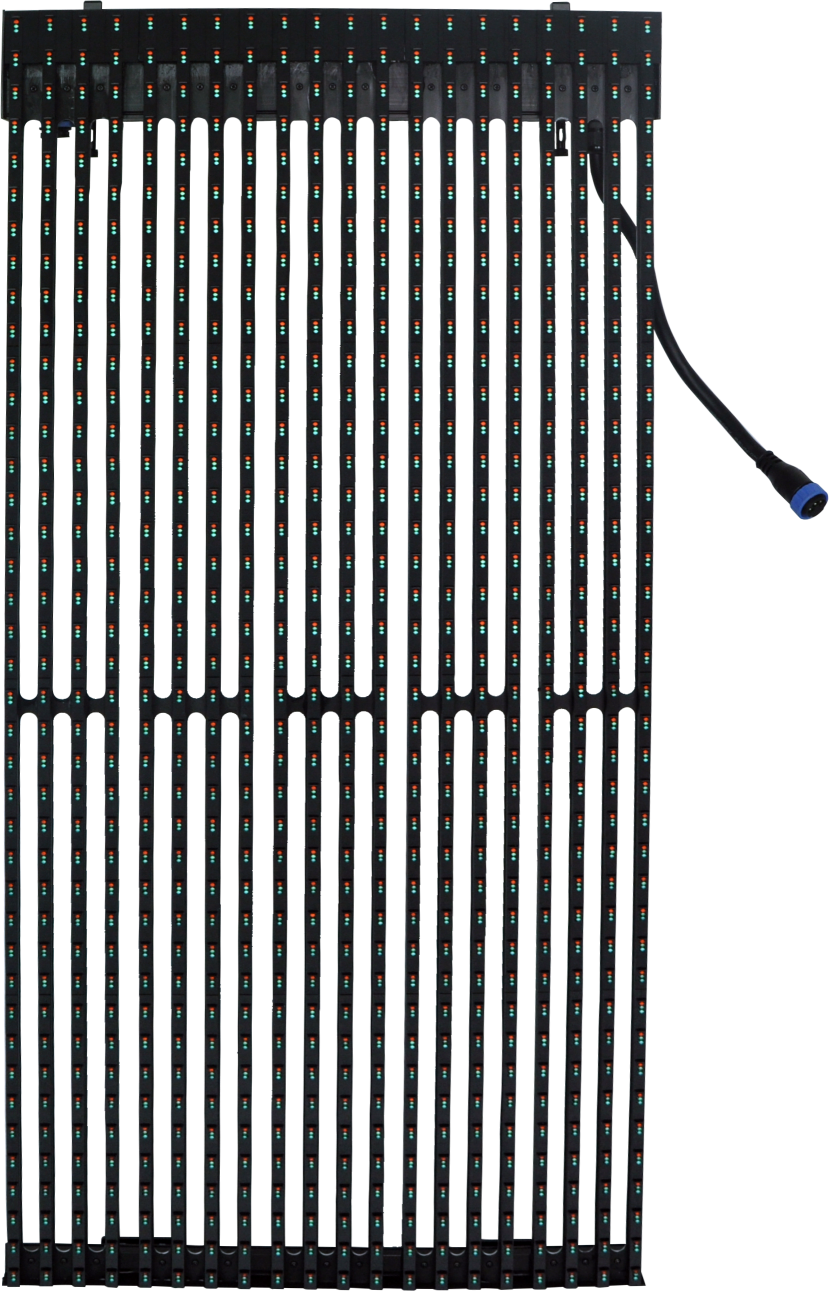

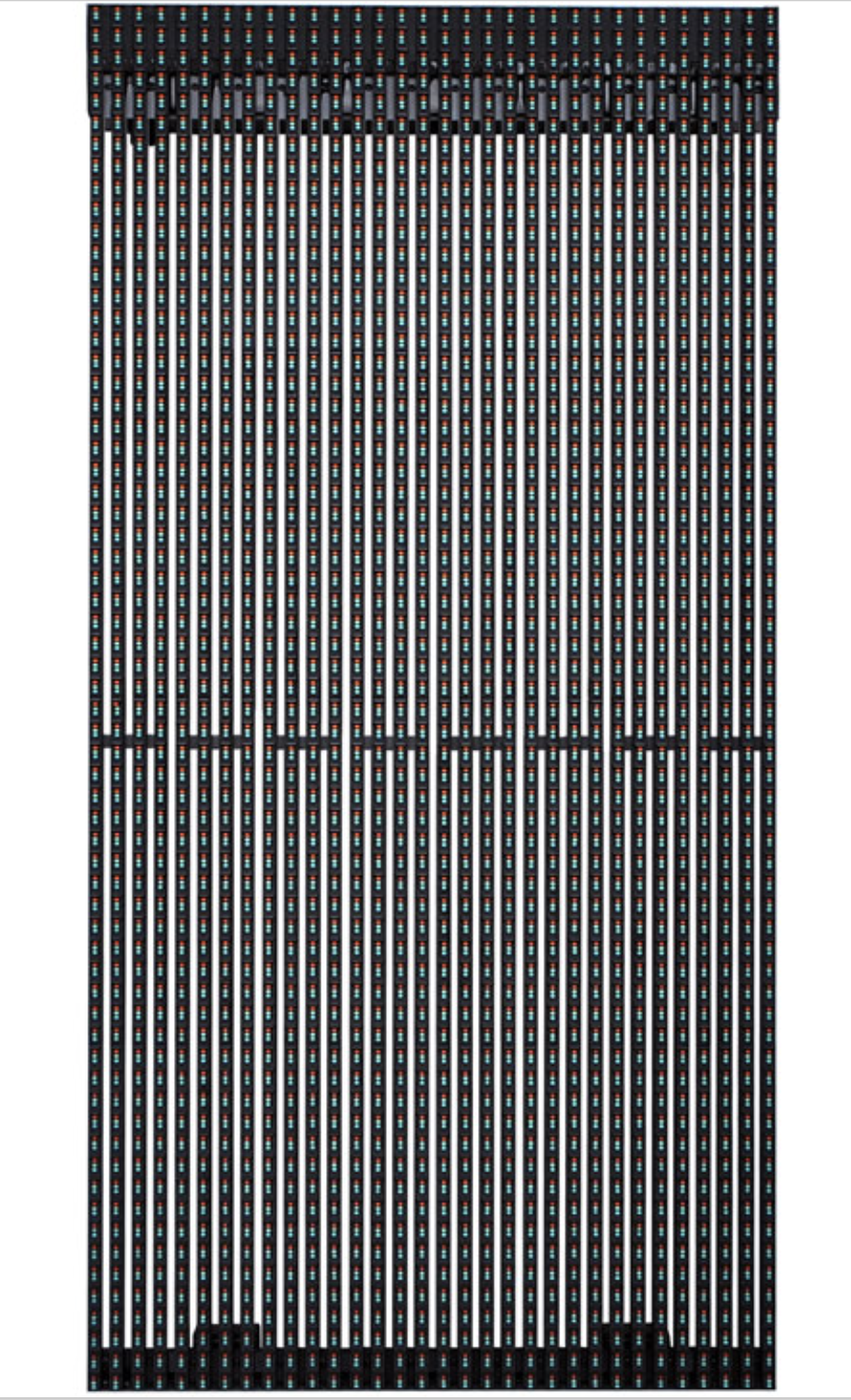

Outdoor DIP Mesh Full Color Led Display Screen
Pixel Pitch15.625mm16.67mm25-25mm15.6-31.25mm31.25mmP25-50mm
Pixel Density4,096 dots/㎡3,600 dots/㎡1,600 dots/㎡2,048 dots/㎡1,024 dots/㎡800 dots/㎡

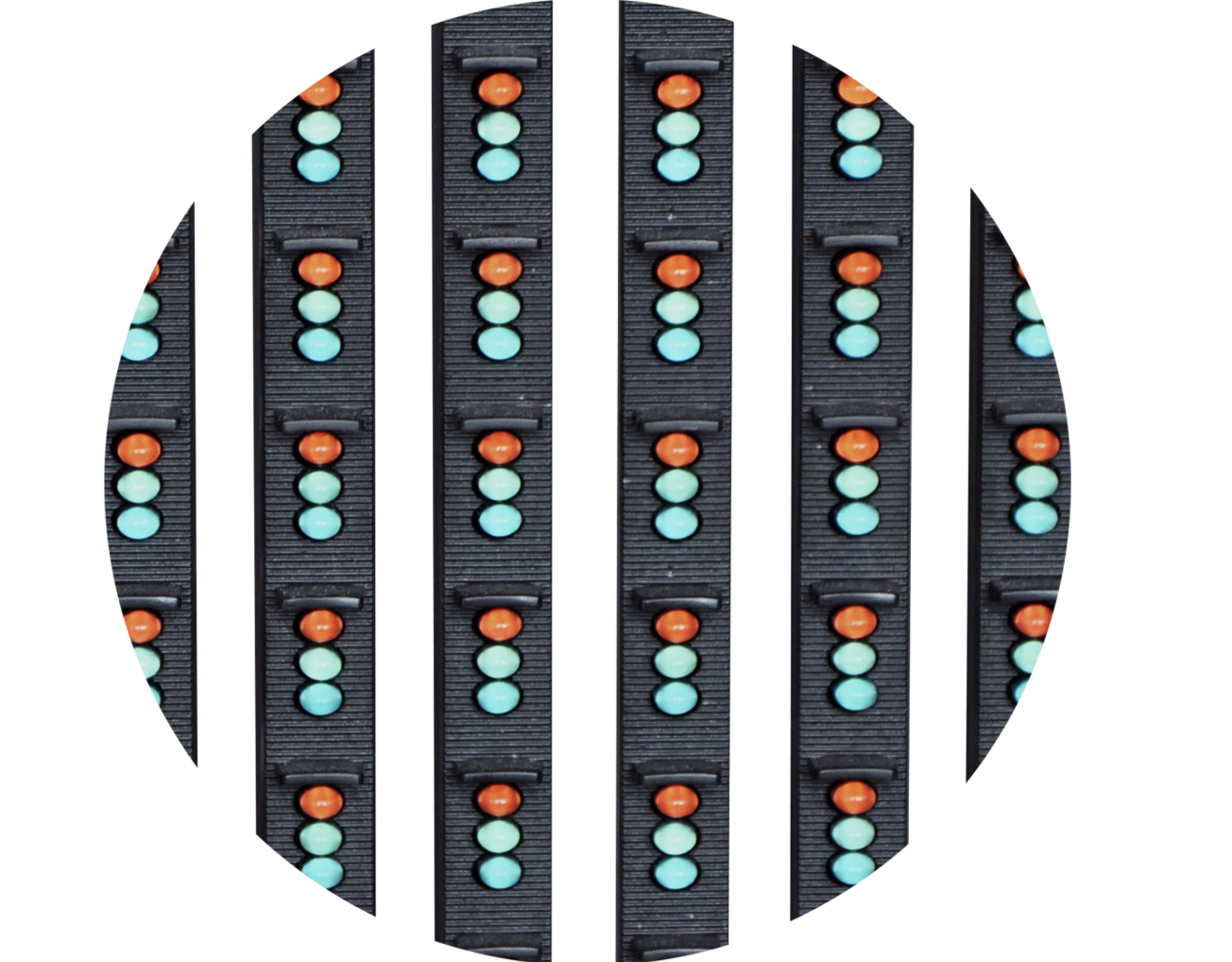

LED TypeDIP346DIP346DIP346DIP346DIP346DIP346
Panel Size (W*H)500*1000mm500*1000mm500*1000mm500*1000mm500*1000mm500*1000mm
Panel Resolution (W*H)64*64 dots/㎡60*60 dots/㎡40*40 dots/㎡64*32 dots/㎡32*32 dots/㎡40*10 dots/㎡
Panel MaterialAluminum ProfileAluminum ProfileAluminum ProfileAluminum ProfileAluminum ProfileAluminum Profile

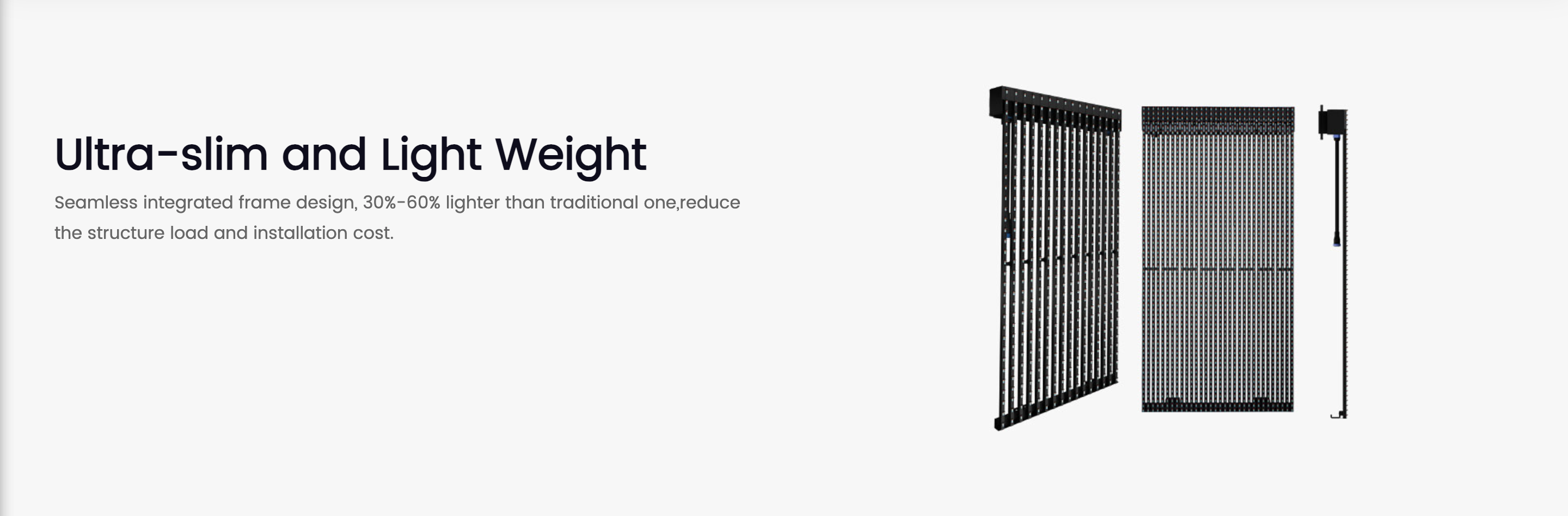

Weight (±0.25kg)18.5kg/㎡18kg/㎡13kg/㎡12kg/㎡12kg/㎡10kg/㎡

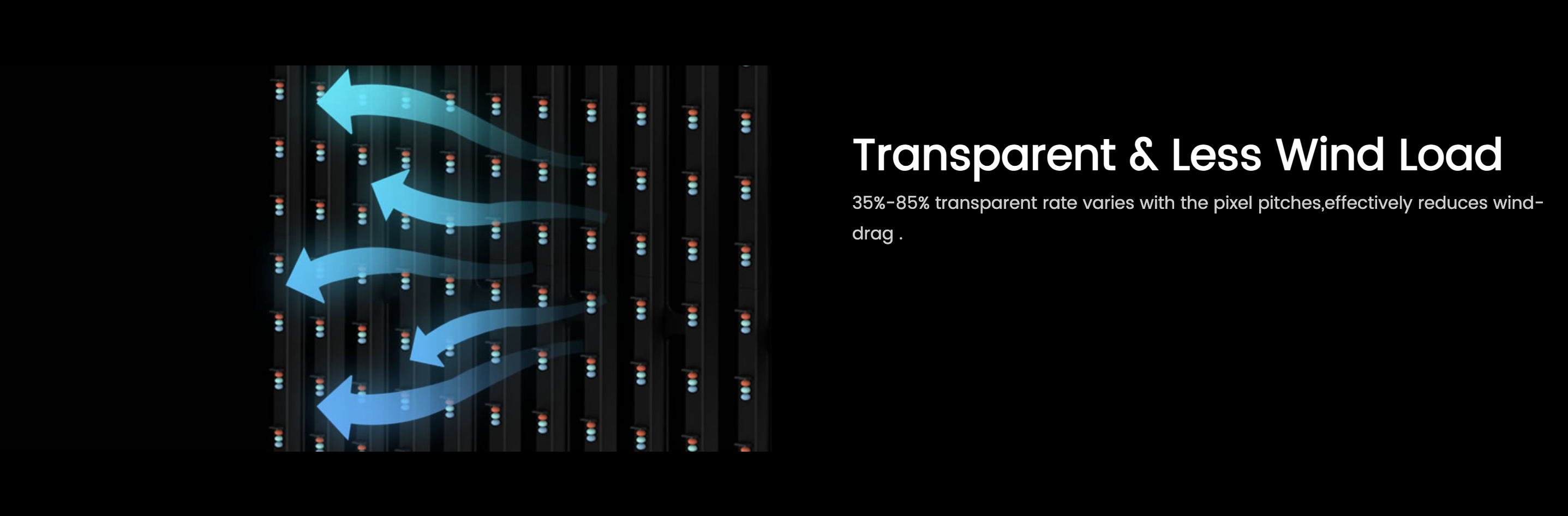

Transparency Rate40%35%60%68%68%85%

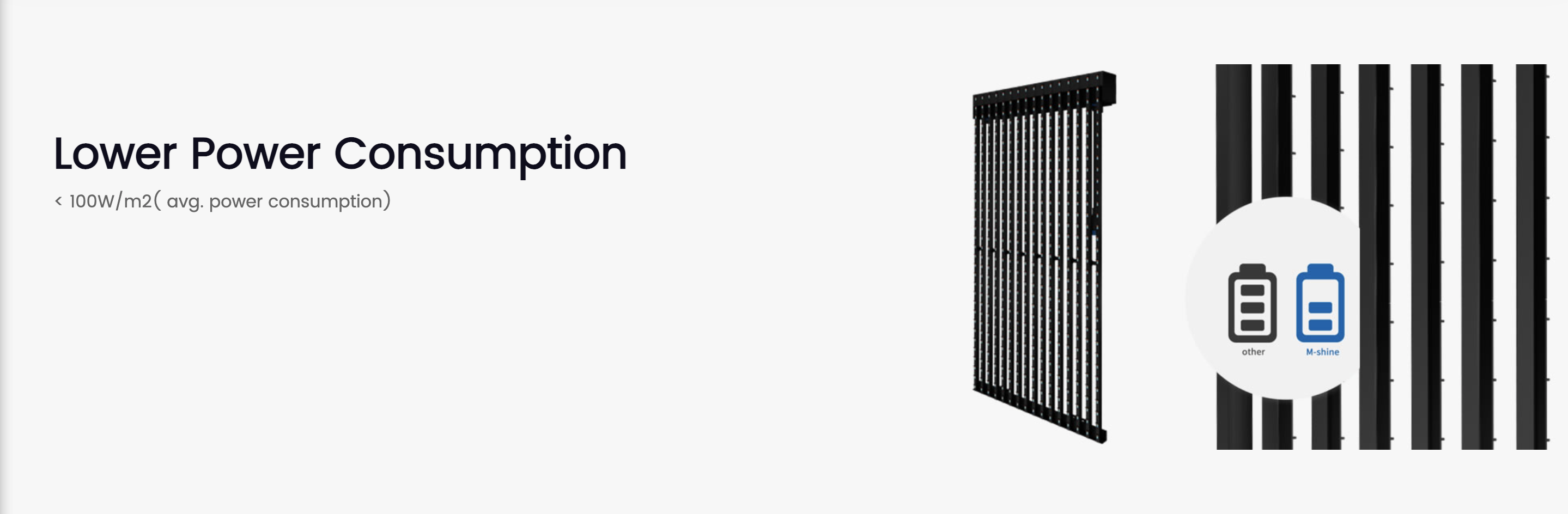

Max Power Consumption400 w/㎡350 w/㎡300 w/㎡350 w/㎡200 w/㎡200 w/㎡
Average Power Consumption140 w/㎡120 w/㎡110 w/㎡120 w/㎡70 w/㎡70 w/㎡
Brightness≥6000cd/㎡≥6000cd/㎡≥6000cd/㎡≥6000cd/㎡≥5000cd/㎡≥5000cd/㎡
Gray Scale14 bit
Refresh rate3840Hz
Driving ModeStatic State
Signal Transmission DistanceCAT5 cable:＜100 m;   Single mode fiber:＜10 km
Input VoltageAC 90~245
Input Frequency50 / 60 Hz
Viewing angleH120° / V60°
Storage temperature-40 ~ +85℃
Working temperature-20 ~ +60℃

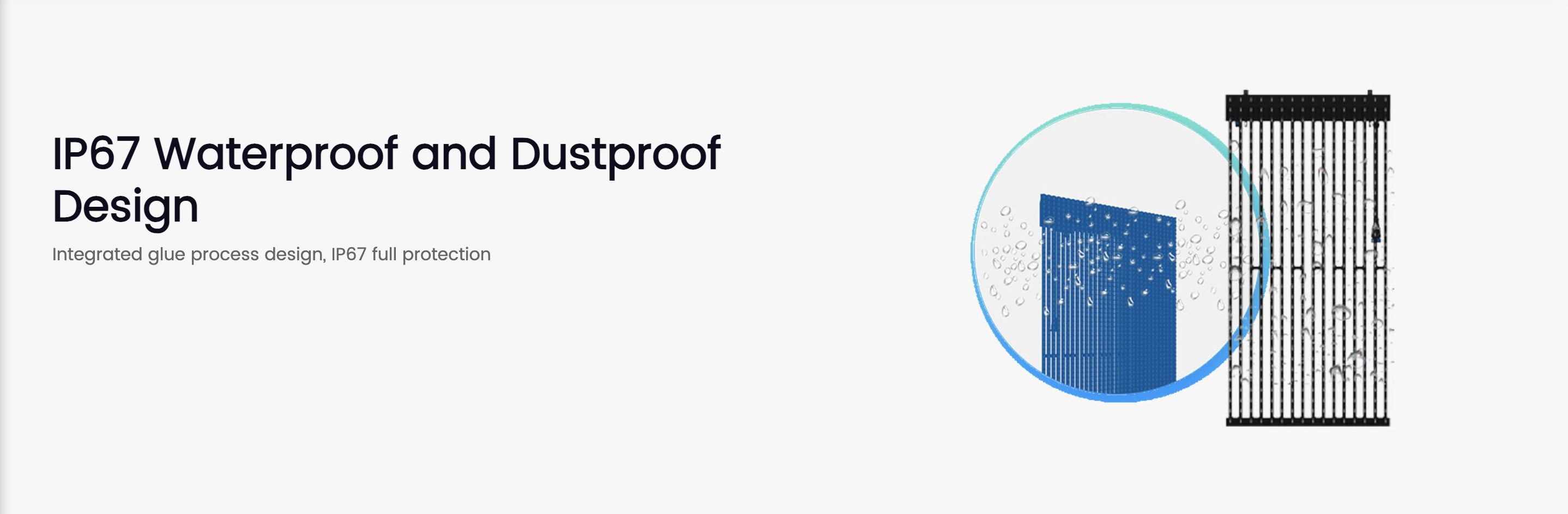

IP RatingIP67
Storage Humidity (RH)10%-90% non-condensing
Working Humidity (RH)10%-60% non-condensing
Lifetime typical value100000 hrs
MTBF≥5000H
Wind resistance performance12 force

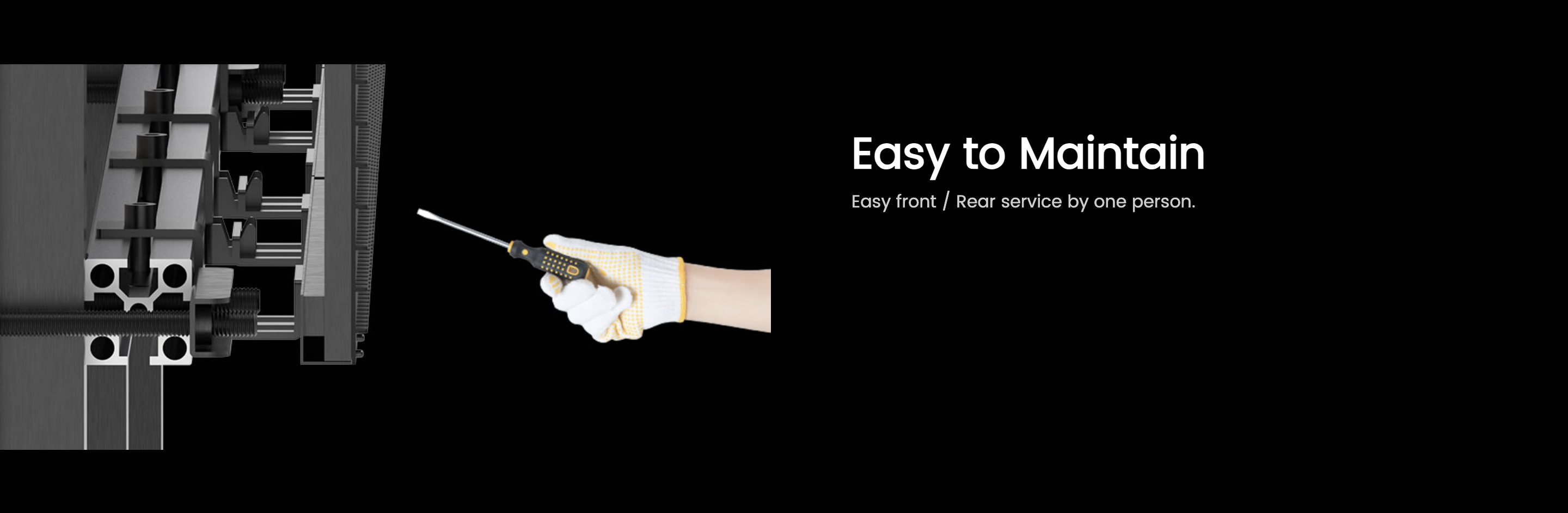

Front / Rear15s/panel
